Products

KS Advanced Materials

  • Conductive Agent for Cathode

    MWCNT Slurry in NMP

  • Conductive Agent for Anode

    SWCNT Slurry in H2O

  • Antistatic Coating Agent for Display Film

    SWCNT Slurry in Alcohol

  • Viscosity Reducer for Cathode

    Viscosity Reducer Slurry in NMP

  • Conductive Agent for Anode

    TWCNT Slurry in H2O

KESTOL® Product List

  • Product

  • Dilluent

  • MWCNT
    (wt%)

  • TWCNT
    (wt%)

  • SWCNT
    (wt%)

  • Application

  • CA150

  • NMP

  • 5

  • -

  • -

  • Conductive Agent for Cathode

  • CA155

  • NMP

  • 5.5

  • -

  • -

  • Conductive Agent for Cathode

  • AN212

  • Water

  • -

  • 1.2

  • -

  • Conductive Agent for Anode

  • SC210

  • Alcohol

  • -

  • 1.0

  • -

  • Conductive Agent for Anode

  • AN304

  • Water

  • -

  • -

  • 0.4

  • Conductive Agent for Anode

  • AN308

  • Water

  • -

  • -

  • 0.8

  • Conductive Agent for Anode

  • AS305

  • Alcohol

  • -

  • -

  • 0.4~0.6

  • Antistatic Agent for Display

  • MWCNT Slurry
  • TWCNT Slurry
  • SWCNT Slurry
  • Viscosity Reducer

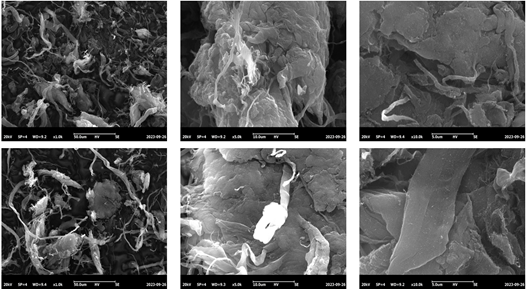

MWCNT Slurry

Among MWCNTs with an average diameter of 10nm, a length of 100~200μm, and a wall count of 5 or more.
It has already been verified as a cathode conductive material for secondary batteries, and the products in use are carefully selected and dispersed. It has excellent electrode resistance and is safe because it does not contain metals such as Fe, Ni, Cr, Cu, and Zn, which can cause explosion hazards to secondary batteries

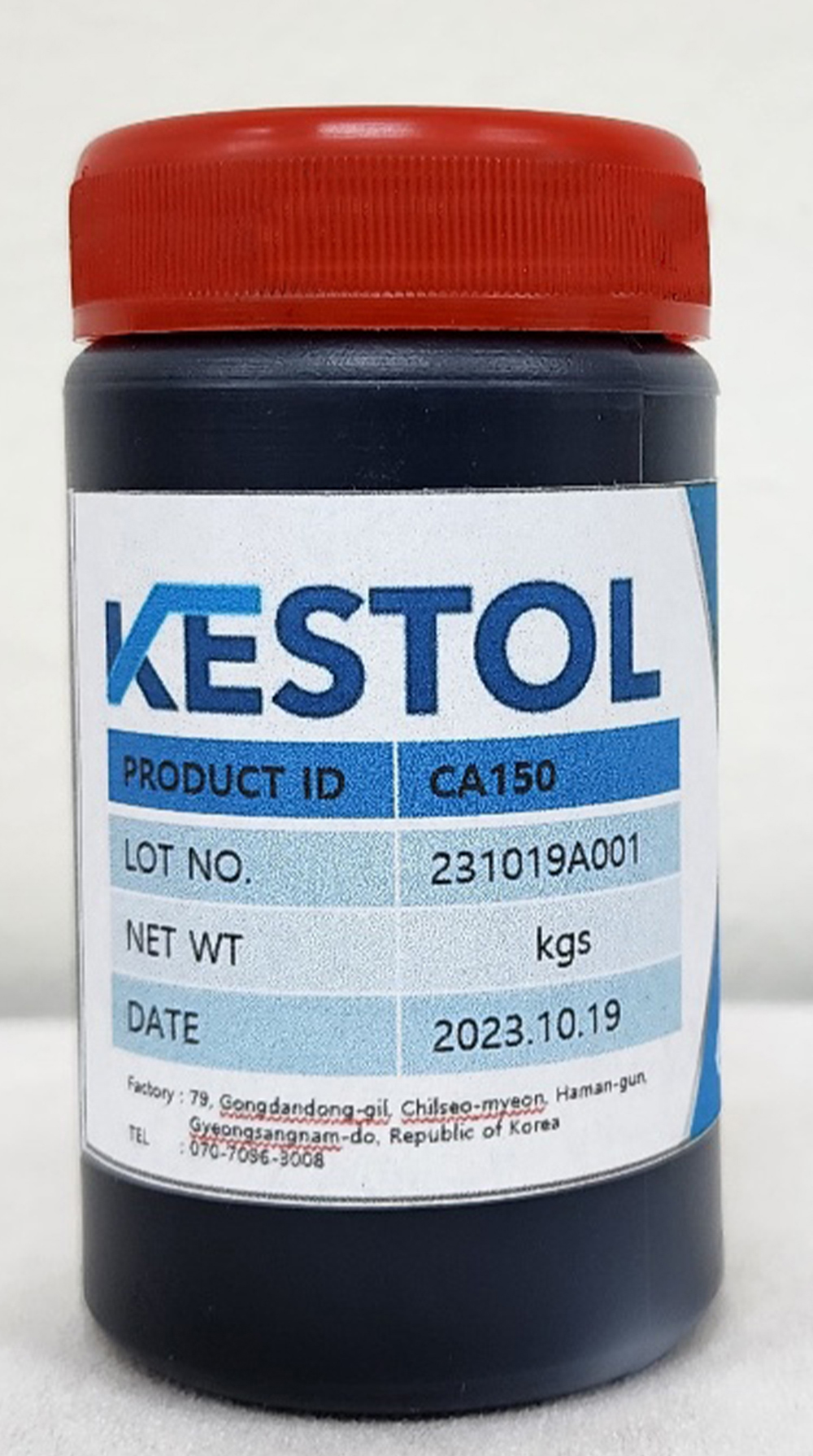

  • Conductive Agent for Cathode
  • CA150 : 5% MWCNT in NMP

TWCNT Slurry

It is a carbon nanotube with an average diameter of 6nm and a wall number of 3~5 SWCNTs with similar properties.
It has similar performance to SWCNT and is relatively economical, so it is attracting great attention as a conjugate material for anode materials.

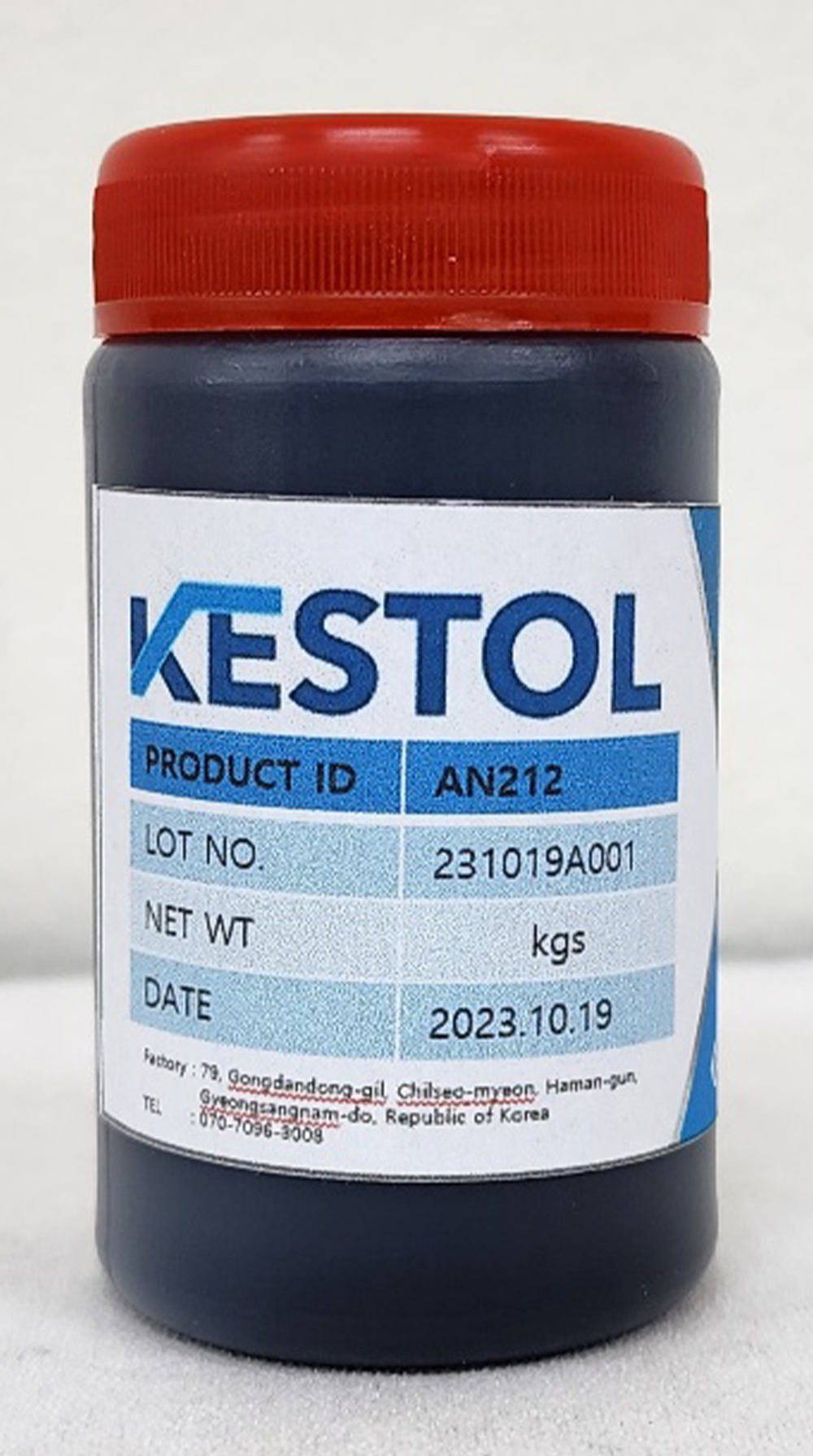

  • Conductive Agent for Anode
  • AN212 : 1.2% TWCNT in H2O

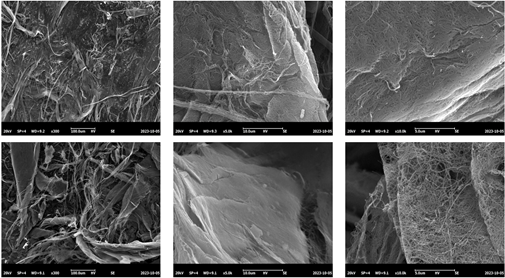

SWCNT Slurry

Single-walled carbon nanotubes have better conductivity, specific surface area, and chemical stability than MWCNT.
SWCNTs are very difficult to disperse due to their long length, but we have secured a dispersion technology of up to 1.2%.
In addition, we have experience in product distribution from a number of SWCNT manufacturers, so we can produce products that consider economic feasibility to meet the needs of our customers.

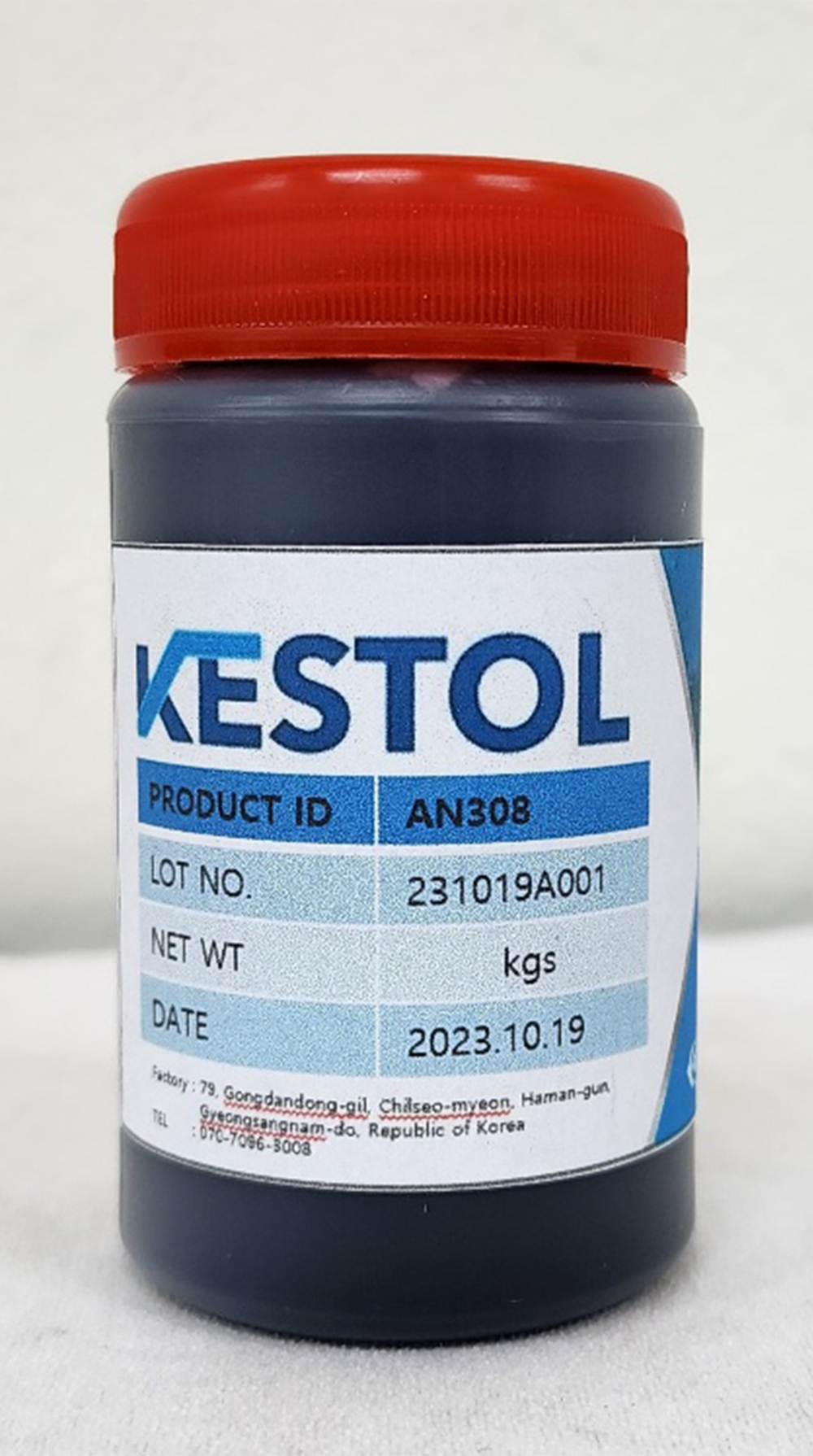

  • Conductive Agent for Anode
  • AN308 : 0.8% SWCNT in H2O

Viscosity Reducer

  • KESTOL® VR-series is a cathode active material composition to which a PVdF binder is applied, and approximately 10% of the PVdF binder input is substituted.

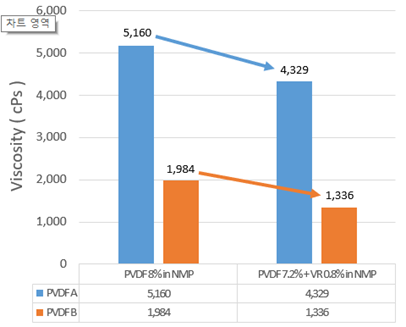

    As the viscosity of the final anode composition decreases, it plays a role in improving the coating properties and adhesion to the electrode plate.
  • VR180 : 8% VR in NMP
  • Viscosity : < 1,000cps(at 25℃)
